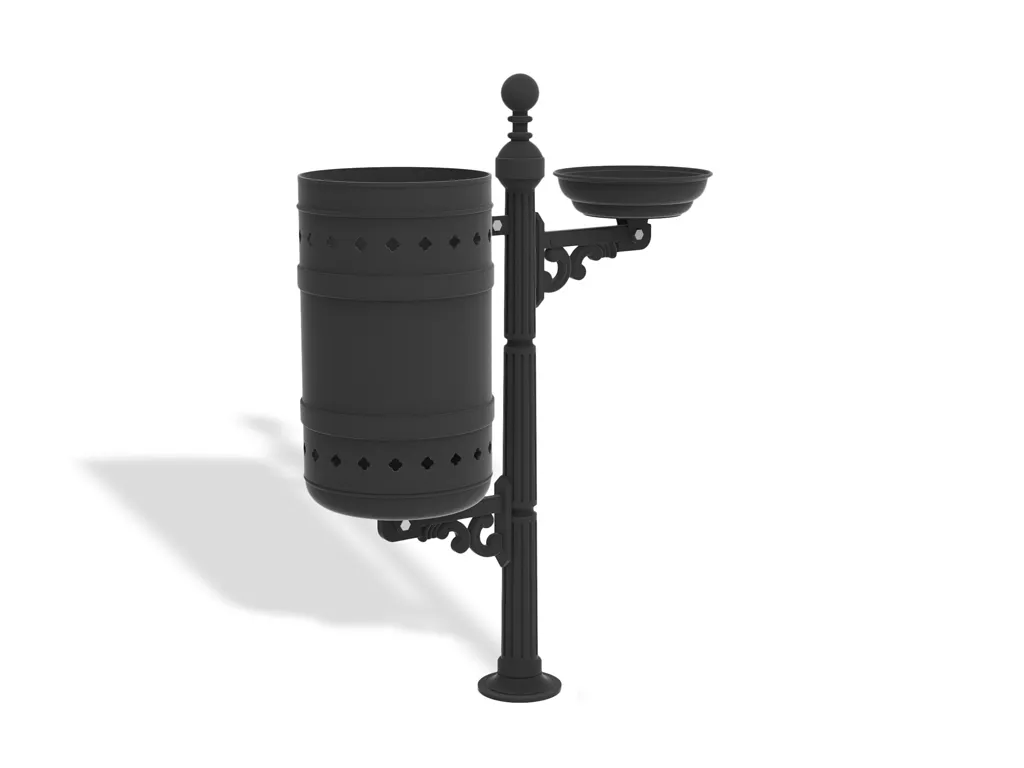

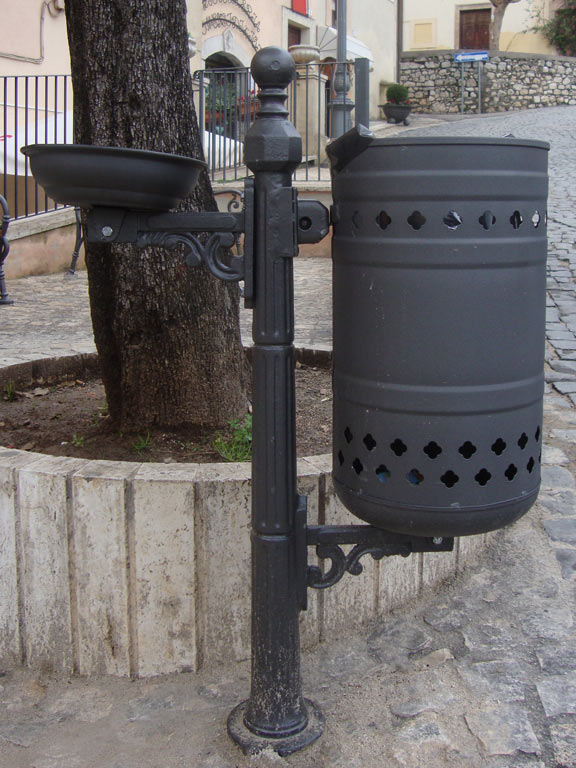

Classic Raffaello model city waste bin with ashtray, composed of:

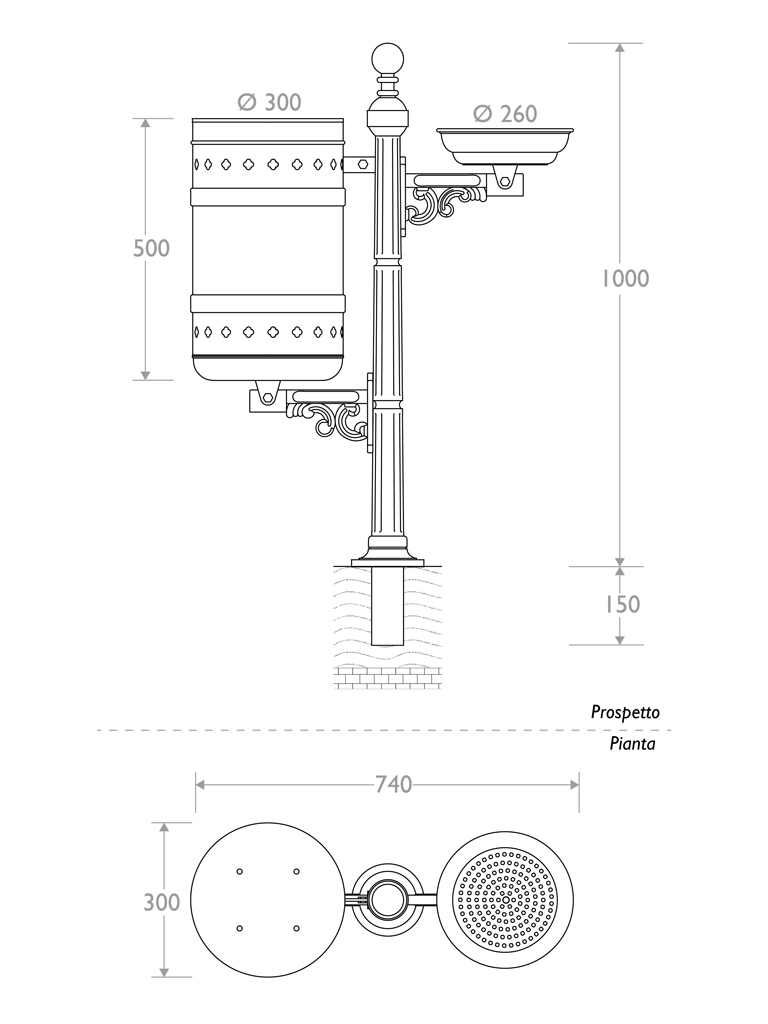

- Cast iron support column with a circular base and a cylindrical shaft divided into three parts, topped with a decorative sphere. Total height 1150 mm, with 150 mm intended for underground anchoring.
- Upper part equipped with a release mechanism.
- Lower part formed by a cast iron support and tilting bracket.
- Cylindrical waste container made of 1 mm thick galvanized steel sheet, with a rounded, anti-cut top edge, featuring three reinforcing ribs and ornamental diamond-shaped perforations for internal ventilation. The domed bottom has drainage holes for rainwater.
- Height 500 mm; width 300 mm; capacity 36 liters.
- Additional shelf with an ashtray, which includes a container with a grilled cap for extinguishing cigarettes.
- Emptying system via 180° tilting of the bin with a locking mechanism.
- Tilting steel bag holder ring (accessory), hinged to the container and positioned to allow the bag to be folded over. The bag holder has a handle integrated into the ring for opening and closing.
Specifications
| Accessories | No |
| height | 1000 mm |
| capacity | 36 lt |
| Color | Black |
| Mounting | In concrete |
| type | Singolo |
| ashtray | Si |
DISCLAIMER
The data reported in the product sheets are the official data available at the time of publication and may be subject to change following technical updates made to the products.
The products may exhibit dimensional tolerances resulting from manufacturing processes, with a maximum deviation of 10% from the declared values.
EUROCOMITALIA reserves the right to make changes without prior notice and disclaims all liability for the accuracy and completeness of the content provided.
Surface protection
GENERAL INFORMATION ON SURFACE PROTECTION
All products undergo surface treatment and painting cycles calibrated according to the constituent material, product type, and final intended use.
Cast iron and aluminum surfaces are duly prepared by mechanical sandblasting or chemical pretreatment to ensure proper adhesion and protection of the coating.
Steel surfaces are protected by anti-corrosion treatments appropriate for the product's geometry and installation environment.
The coating is applied using a 5P cycle (thermosetting powder coating with electrostatic application) or a 3P cycle (spray painting with anti-corrosion primer and finish), depending on the substrate and performance requirements.
Standard finish: antique black, Eurocomitalia type.
Any color from the RAL Classic chart is available upon request.
Detailed technical specifications are available in the dedicated documentation.
