E-bike charge station electric powered

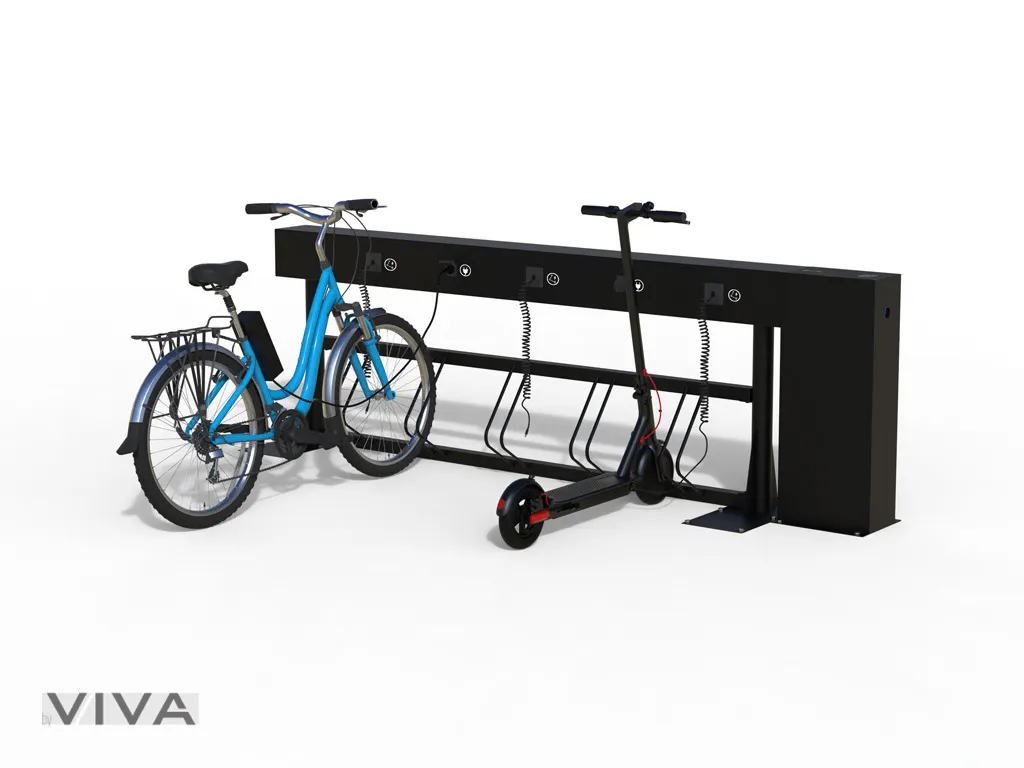

Electrically Powered E-bike Charging Station with Five Slots

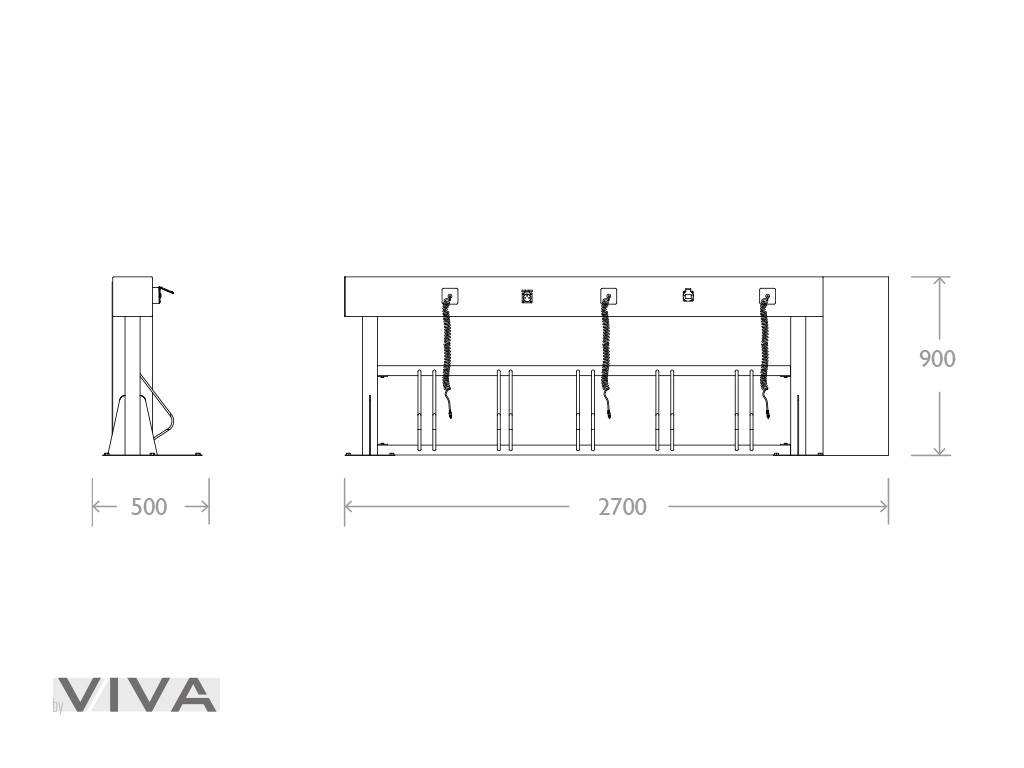

Structure Composed of:

Electric Bicycle Rack Module: Made of steel; the base module contains 5 bike slots.

PLUG Module: Located at the center of the shelter, it consists of a 200 x 200 mm tubular section containing 5 sockets for charging electric bikes.

PLUG Module for Electric Bike Charging Station

Each PLUG is equipped with a Schuko socket for charging, and also includes a bike rack to allow the user to conveniently park the bike during charging.

Technical Specifications:

5 Schuko sockets with IP67 protection

5 bike racks

Nominal current: 16 A

Nominal voltage: 230 V

Nominal frequency: 50 Hz

Type of socket (category): flush-mounted socket

Type of protection: IP67

SWITCH:

1 Residual current circuit breaker (RCCB) Id 0.003mA

Response time: INSTANTANEOUS

Nominal current: 25/22 A

Compliant with standard: CEI EN 61008

Indicator light: voltage presence

Version Features:

Equipped with 2 USB sockets for charging devices up to 2 A and a 20W wireless charger incorporated into the structure

Neutral white LED backlighting system

Fixing and Maintenance:

The feet are prepared for doweling, using an M10 steel bolt

The smart module is removable and can be sent for maintenance

The surfaces are duly protected through a 5P cycle and powder-coated. See specifications on material protection.

Registered design, registered smart technology

Extensive Customization Options for the Customer:

The cross-functional skills of our team, along with knowledge of materials and processing technologies, enable us to tackle any custom project. Through cloud connection, the VIVA PORTAL software manages the network of stations remotely on any device at any time. Control and verify the system from a single station. Manage all your stations in real-time simply and efficiently, even in multi-user environments. Monitor your network of stations and check the monitoring information sent. Battery charge monitoring, weather info, environmental info, device charging and discharging, error prediction and reporting.

Module Features:

The magic happens thanks to the modules, the heart of the system, allowing you to customize the product based on your needs.

UNIQUE TECHNICAL FEATURES OF THE VERSION:

USB Charging: 2 ports 5W
