'Le Corbusier' smooth pole top for wall
Single pole top Le Corbusier, consisting of:
–Galvanized tube, round and curved as per drawing;
–at the base of the tube is a cast iron ornament in the shape of a pine cone;
–at the top is a decorated connector for ¾ GAS threaded tube lantern.
The pole top in held at the pole by ornamental hooks in aluminum or cast iron.
The pole top is predisposed for attachment on a 70, 60, 89 mm diameter pole depending on the costumer's request or on the type of pole on which the pastoral is to be installed.

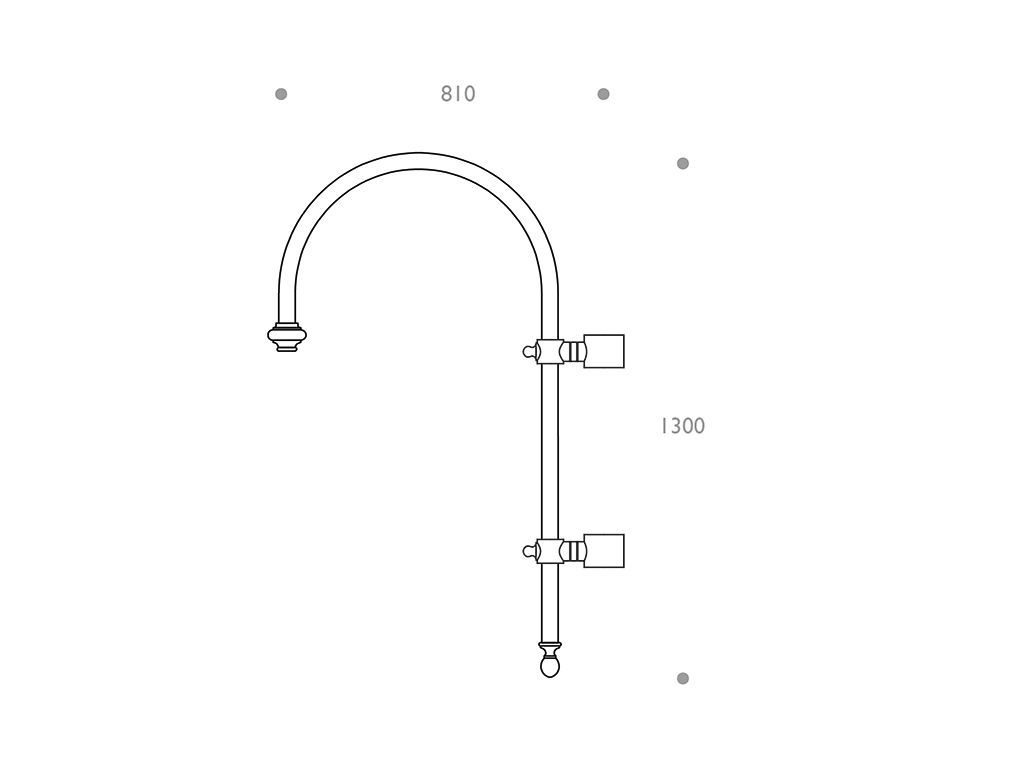

Pole top measures at the base:
Width 810 mm, lenght 1300 mm.
Made with steel tube of 45 mm diameter, thickness 3 mm. Other measures and dimensions on costumer's request.
Painted in anthracite black or other RAL color on request.
Surface protection:
See specifications on material protection and painting
