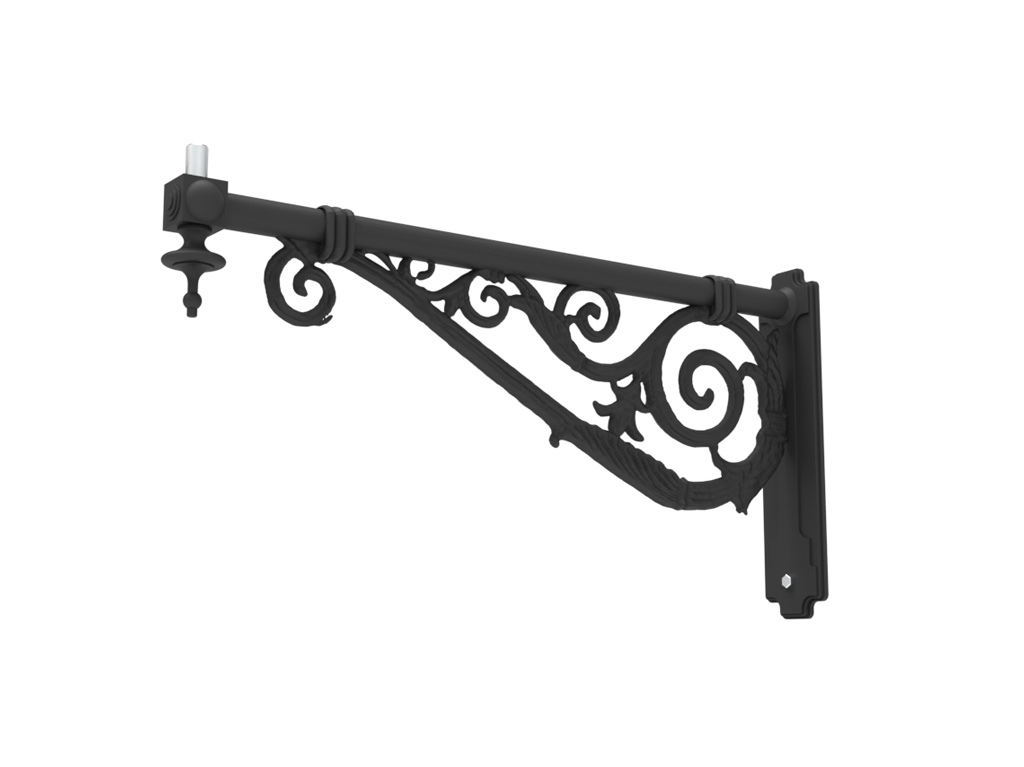

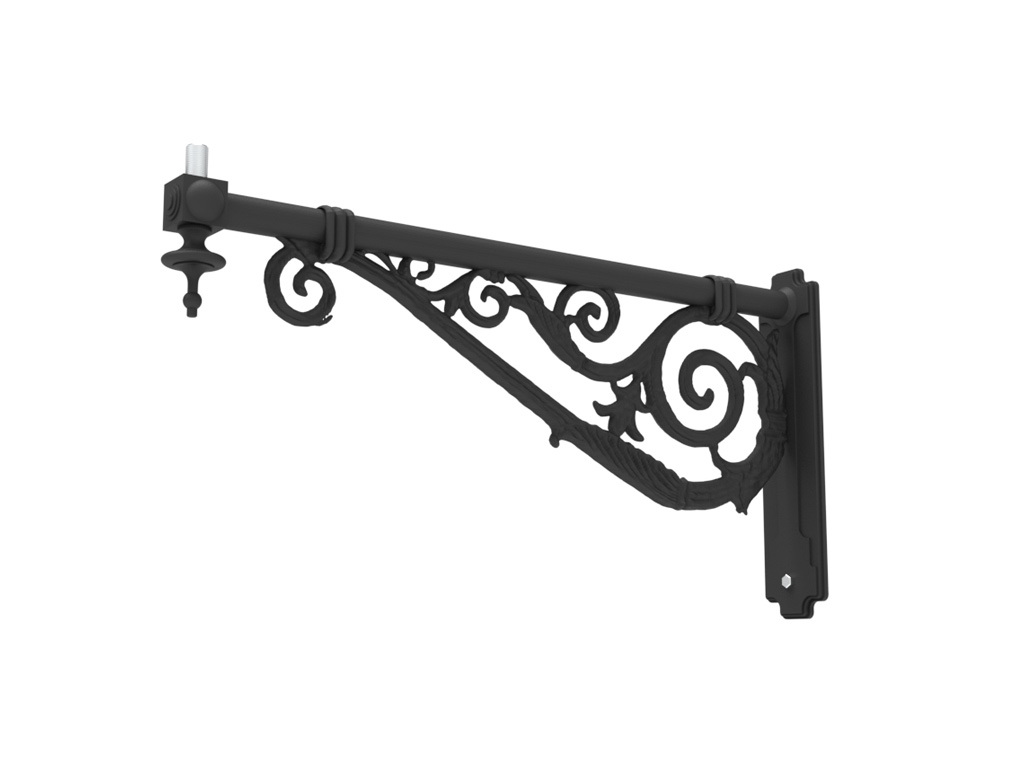

UN EN 1561 GJL250 Cast iron, UNI EN 1706 aluminum and FE 360 UNI EN 10219-1/FE 360 UNI EN 10219-2 steel wall bracket :

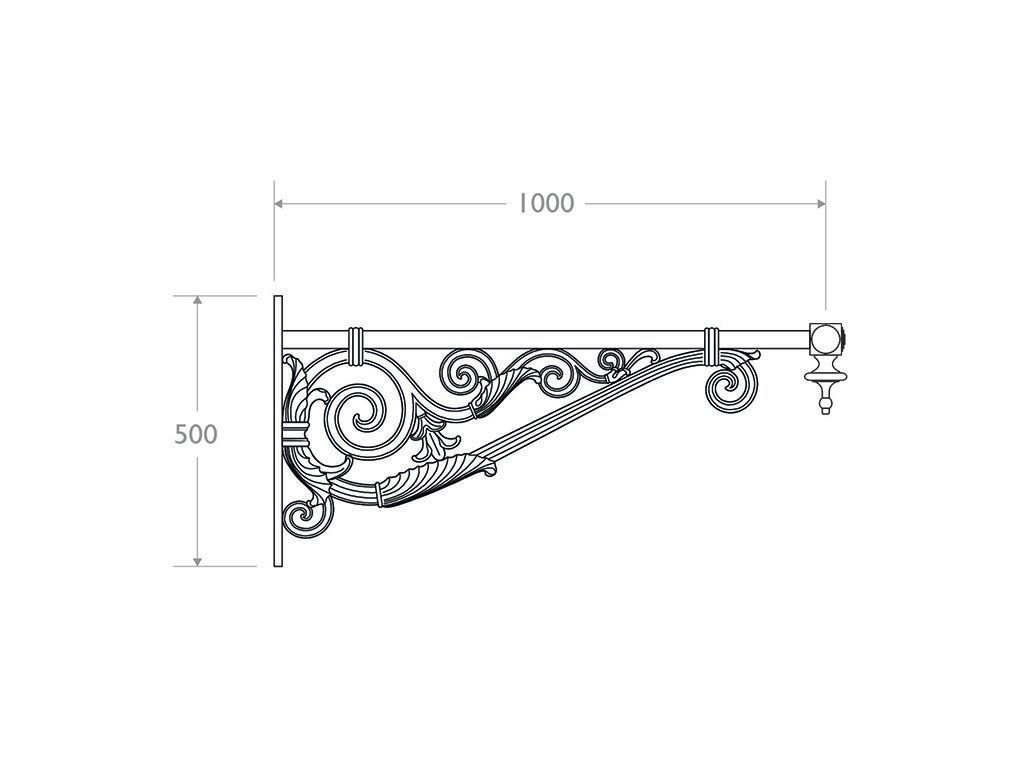

Total height of the bracket 500 mm, length 1000 mm
The bracket consists in a linear galvanized steel tube 33mm in diameter and two rings that hold a decorated bracket.
The tube is prearranged for the passage of cables and terminal for grounding inside and threaded 3/4" GAS in the final part for attaching the light fixture
The bracket comes with a decorated wall plate 53 cm in height and has three 13mm holes for wall fixing with expansion bolts and a hole for the passage of electrical cables
The bracket may be fixed to wall with fishers screws (20 cm deep) or bolted (bolts not included).
Painted black or any other RAL colore requested.
Protection of surfaces: See specifications on the protection of materials.
