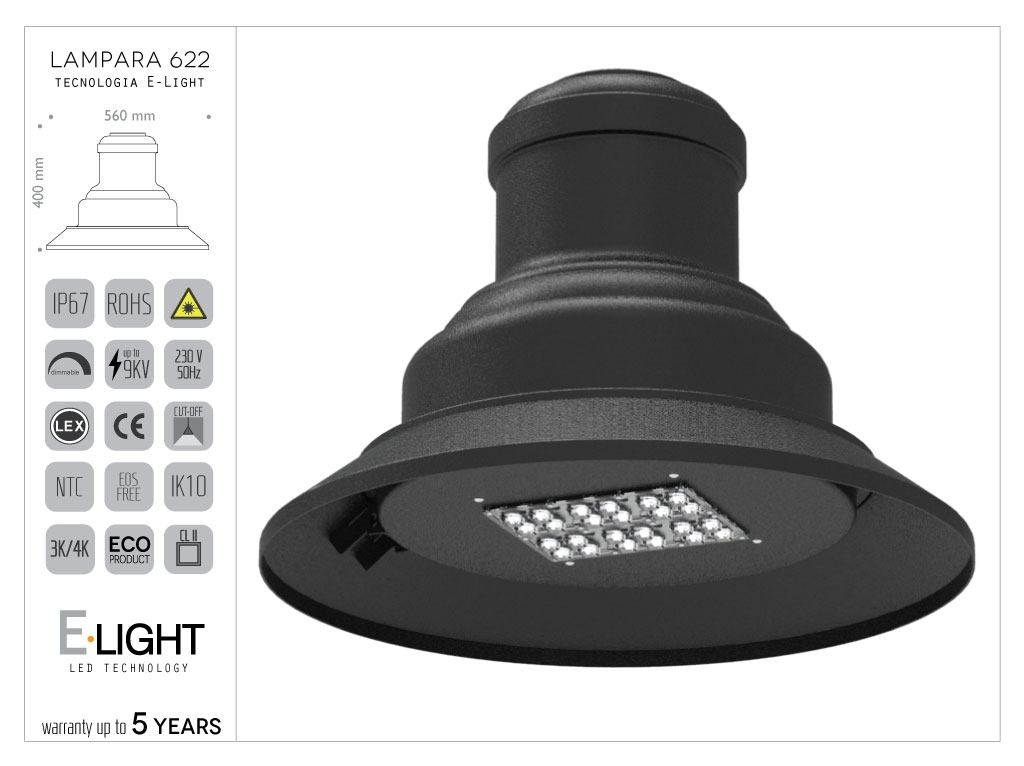

For use with LED In compliance with
CEI/EN 60598-1 :2008 Lighting source
CEI/EN 60598-2-3 Street lighting source
No photo-biological risks .This luminaire is in the “Exempt Group” (no risk linked to infrared, blue light and UV radiation) in accordance with EN 62471:2008.
EN 62031 Led modul.
2004/ 108/CE Electromagnetic compatibilities fo lighting luminaire UNI I 0819 lighting pollution EXENT
An active control system changes the current intensity in order to maintain the lifespan of the LEDs even under extreme thermal conditions.
DALI driver compatible with remote management systems.
The luminaire is fully programmable as regards luminous flux emission through .
Overvoltage protection: 10kV in Common Mode (CM), 6kV in Differential Mode (DM).
Dimensions - Area - Weight
Height Width Lenght Diametre Area exposed to wind (S) Weight 860 mm 450 mm 450 mm 0.17 m2 8.3 Kg
Electrical characteristics
Voltage Frequency P. Rating IP CL Il CL I Cos 181 Operative Temp. 220- 240V 50-60 Hz 55 CL 11 > 0.9 -30°C. .. +40°C
Equiped with n. 12 Osram chip - 21,4w , 2057 lumen ,lifetime 70000h 4K , asimmetrie optic ( base LED version )
Connection
- Upper frame made in aluminum, with threaded coupling G 3/4" for fixing.
CEI/EN 60598-1 :2008 Lighting source
CEI/EN 60598-2-3 Street lighting source
No photo-biological risks .This luminaire is in the “Exempt Group” (no risk linked to infrared, blue light and UV radiation) in accordance with EN 62471:2008.
EN 62031 Led modul.
2004/ 108/CE Electromagnetic compatibilities fo lighting luminaire UNI I 0819 lighting pollution EXENT
An active control system changes the current intensity in order to maintain the lifespan of the LEDs even under extreme thermal conditions.
DALI driver compatible with remote management systems.
The luminaire is fully programmable as regards luminous flux emission through .
Overvoltage protection: 10kV in Common Mode (CM), 6kV in Differential Mode (DM).
Dimensions - Area - Weight
Height Width Lenght Diametre Area exposed to wind (S) Weight 860 mm 450 mm 450 mm 0.17 m2 8.3 Kg
Electrical characteristics
Voltage Frequency P. Rating IP CL Il CL I Cos 181 Operative Temp. 220- 240V 50-60 Hz 55 CL 11 > 0.9 -30°C. .. +40°C
Equiped with n. 12 Osram chip - 21,4w , 2057 lumen ,lifetime 70000h 4K , asimmetrie optic ( base LED version )
Connection
- Upper frame made in aluminum, with threaded coupling G 3/4" for fixing.
- Thread coupling G 3/4"
- Suitable for suspended installation
Materials
- Die-cast and extruded aluminun (UNI EN 1706).
- Sheet aluminun.
- Stainless steel fasteners.
Structure - Main components
- Tilting upper square frame made in aluminum, for access to the auxiliary and optical compartment.
- Support plate LED module in aluminum sheet with high thickness for an optimal heat dissipation.
- All external screws used are in A2 stainless steel.
Optics ( for base LED equipment )
- No upwards dispersion of the luminous flux.
- High visual comfort.
- Refractive lens / PC screen - Geometry road and mixed areas.
- Refractive lens / PC screen -Rotosymmetrical for mixed areas. Electrical auxiliaries
- Electronic power supply for LED module.
- Terminals for wires with a max. section of 2,5 mm2
Operations and maintenance
- To access the optical and wiring compartment, unscrew a screw on upper frame and rotate it.
- Separate electronic driver from LED module, individually replaceable.
- Periodic maintenance for the external cleaning of the structure and the screens from dust and smog (the operations must be performed with the line power off and with luminaire cold). Painting
- Standard color is dark gray, type EUROCOMITALIA.
- lnformation about paint steps used on this product in specific technical sheet.
