VIVA AUDIO  urban street bench with AIS system , built as follows:

General technical features:

The seat and the back rest are made from 120 x 40 mm, milled STRONGPLAST (recycled plastic) boards, internally reinforced with 15 x 15 mm steel bars. The boards are bolted to the seat and back rest supports;

SMART charging module equipped with MPPT technology with photovoltaic panel and batteries embedded in the bench structure

Version features:

Audio Interaction System (AIS) is a patented system that allows users to interact with the audio content of the system, some peculiar features are the ability to play content of interest based on the presence ( need optional precence module ) of users around or sitting on the bench (eg tourist guides ).
Furthermore, the system allows you to reproduce relaxing ambient sounds automatically based on the climate conditions and the presence or absence of users.
Finally, the system is equipped with keypad that allows you to select audio tracks directly in the system.
Amplified audio system.

Equipped with 2 USB sockets for charging devices up to 2A and 3 wireless charger built into the structure;

Neutral white LED backlight system;

Local management and control system via WIFI connection or by dedicated CLOUD software with 12 month assistance (see assistance characteristics);

Standard sensors for temperature, humidity, charging, discharging devices, weather sensing system with automatic stand-by ( required internet connection ) ;

Self-management and consumption control system with error prediction and reports;

Modem for 4G LTE Internet connection ( usb key and SIM card not included ) .

Custom access point , WIFI integration wit PORTAL custom USER and PAGE .

Sensor ( see carateristics ) .

Installation and maintenance:

The trapezoidal legs of the bench are prepared for M10 steel bolt anchoring.

Registered design, registered smart technology.

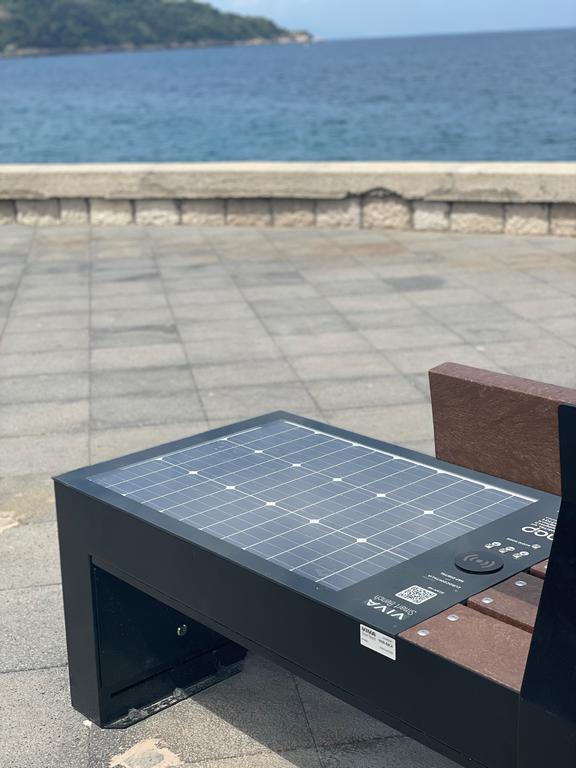

ZERO WIRE SYSTEM , the smart bench positioned in into sunny place provide all service  without need wiring.

The new VIVA™ bench was created to modernize today’s cities with innovative technologies in the context of control and use of specific functionalities aimed at satisfying the modern needs of citizens.

Thanks to its innumerous technological functions, these new benches become not only a resting place but also a meeting point, where it is possible to conceive a new way of living the city.

We can recharge our smart devices thanks to the side USB sockets, connect to wifi,  etc... communicating has never been so easy !



Ample space for customization.

The transversal skills of our team, the knowledge of materials and processing technologies allow us to tackle any custom project.

Through the cloud connection, the VIVA software manages the network of stations remotely on any device at any time.

Control and verification of the system from a single location.

Easily and effeciently manage all your smart workstations in real time, even in multi-user mode.

Check your workstations network and verify monitoring information sent.

Battery charger monitoring, weather info, environmental info, device charge and discharge, prediction and error report.



The characteristics of the modules:

The magic happens thanks to the modules, the heart of the VIVA system ; they allow you to customize the product according to your needs.



UNIQUE TECHNICAL FEATURES OF THE VERSION:

Total Control:Access via WIFI interface for displaying real time NBSP data and control.

InfoSensor:Environmental information from sensors such as temperature and humidity, charge and discharge devices, energy production, instantaneous and time-consuming consumption, autocheck with error prediction and reports.

VivaDirect:Direct access to information and control via WIFI close to the station.

VivaPortal:Remote management and control portal in the cloud ( required internet connection ) .

Photovoltaic modules:Monocrystalline 60W power.

Battery pack:Type AGM / Capacity:up to 0.72 kWh.

USB charging :2 ports 5W and 2,2W.

Wireless charging:Power 20W / Efficiency over 80%.

Cooling system:Air flow : 170 m3/h , temperature trigger:38°C.

LED Lighting:backlight panel and neutral white dimmable LED lighting.



Optionals:
