Solar-Powered Road Lighting SOLARIS24 with Asymmetric Optics and Energy Saving 60W

Our all-in-one solar street lamp.

Sold as a complete system.

This compact, unique, and easy-to-install unit can be pole-mounted.

It automatically turns on at dusk at 33% brightness and switches to 100% when motion is detected.

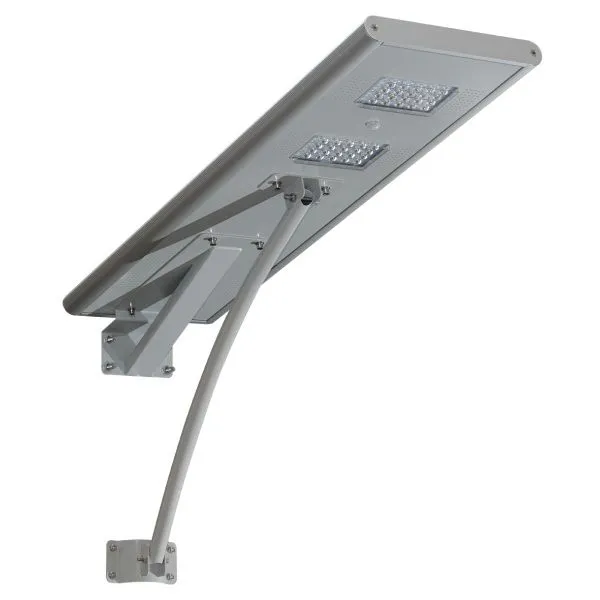

It consists of a solar panel installed on top of the fixture, with a lithium battery inside and a set of powerful COB white LEDs on the bottom of the unit.

A motion sensor is also located on the bottom part.

Upon detecting activity, the light switches to maximum brightness mode and returns to ambient mode (about 1/3 of the power) when the area is clear of movements.

Thanks to its compact design, this all-in-one lamp can also be a good choice for windy locations.

The large version with an output of 3200/3600 lumens makes it the most powerful LED motion sensor floodlight on the market.

It is suitable for parks, gardens, yards, squares, and similar areas.

What an excellent solar LED street lamp!

Performance

All-in-one design.

Protection grade: IP65

Ideal charging temperature: from 0°C to +60°C

Ideal discharging temperature: from -20°C to +60°C

Ideal storage temperature: from 0°C to +45°C

Included anti-tampering stainless steel hardware for pole mounting

Included tool for installation/removal of anti-theft bolts

Product Features

Passive infrared motion sensor integrated into all models

Detection distance varies based on factors such as installation height and ambient temperature

All lights can illuminate in ambient mode up to 24 hours, or up to 12 hours in full brightness mode

No light pollution

Operating Modes

The solar panel converts sunlight into electrical energy and stores it in the Li-Fe battery via the controller

The COB LED spotlight automatically turns on at night thanks to the light sensor and provides illumination for various areas

When no motion is detected, the light operates in energy-saving mode (about 30% of the power)

When the PIR sensor detects motion, it switches to full power mode for about 30 seconds, then returns to saving mode

It is also possible to pre-program the lighting phases via a timer, without using the motion sensor:

First hour: 30% lighting

Next 4 hours: 100% lighting

Remaining hours (before dawn): 30% lighting

Solar Street Lamp Installation

Install the fuse (if present) before use (remove any film under the fuse)

Use the provided tool to tighten the security bolts

Orient the solar panel as much as possible to the north to maximize solar exposure and therefore charging

Trees around should not obstruct the light, otherwise trim them

Avoid tall or wide structures in front of the lamp that may block sunlight

Technical Specifications

Solar panel (Max power): 18V / 50W (high-efficiency imported silicon solar cells)

Battery type: Lithium battery (5-year lifespan)

Battery capacity: 12V – 22AH

Lighting angle: 90° x 126°

Charging time (in the sun): 6-7 hours (with adequate solar exposure)

Discharge time: over 20 hours (energy-saving mode)

Working temperature: -20°C ~ +60°C

Installation height: 5-6 m

Distance between lamps: 15-25 m

Lamp material: aluminum alloy

Certifications: ISO / CE / ROHS / IP65
