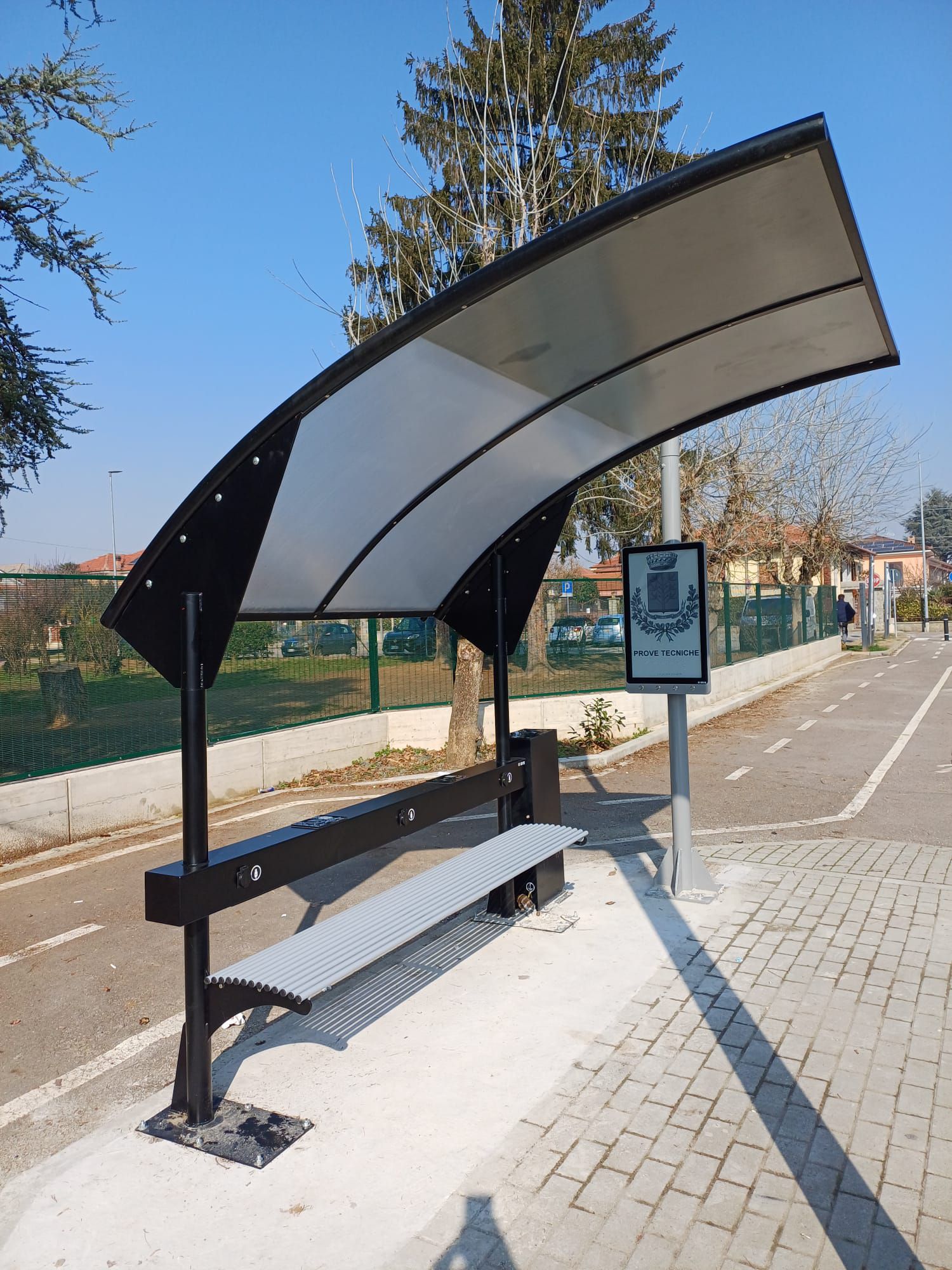

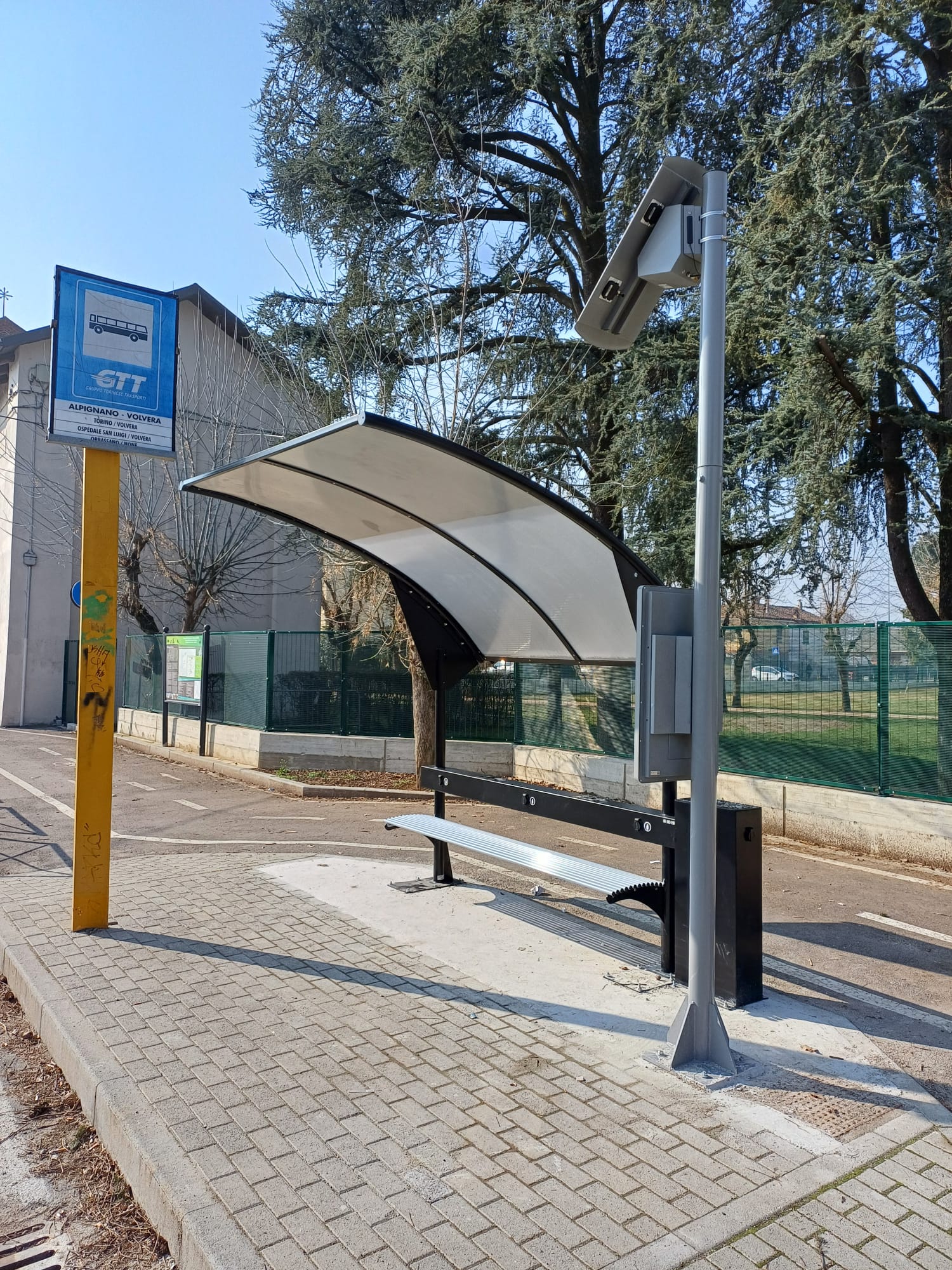

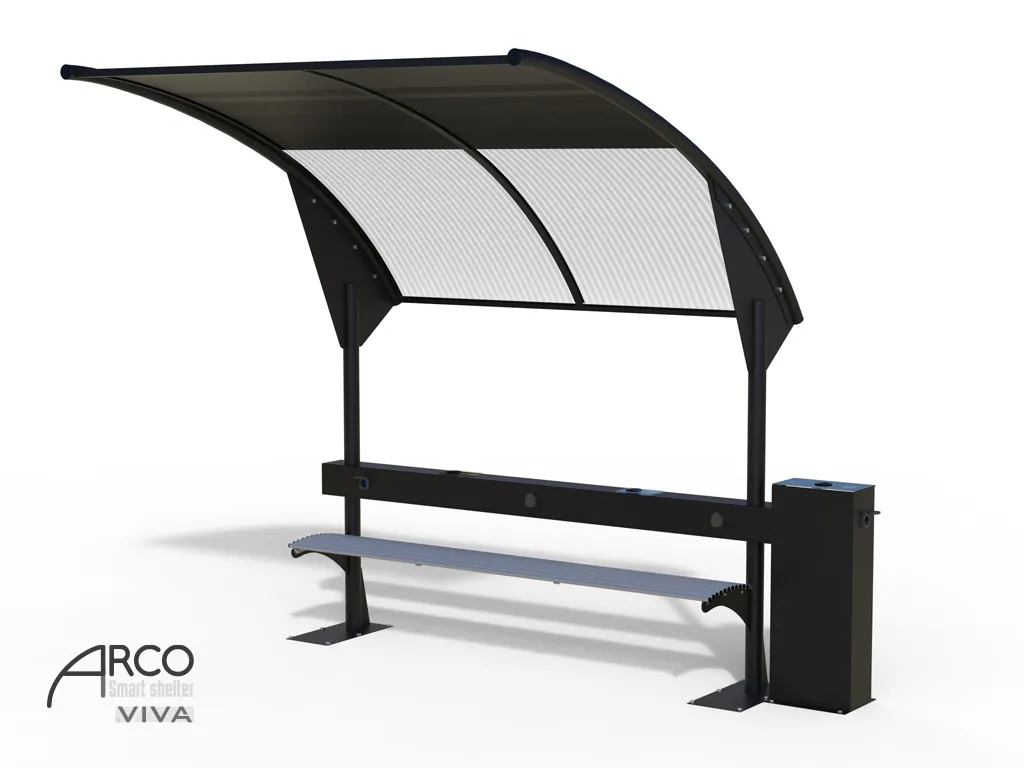

Modern shelter Arco SMART with five places for E-bikes and scooters equipped with charging station totally powered by solar ,roof made of polycarbonate  and PMMA.



Structure Composed of:

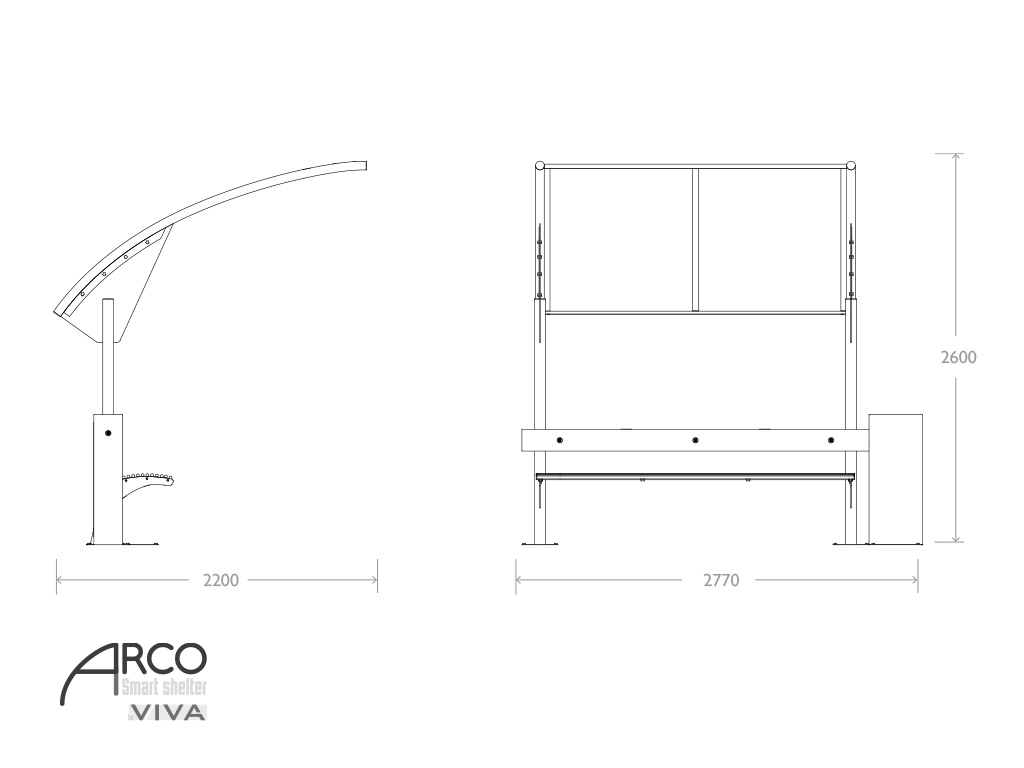

Steel tubes (diameter mm 76 and 60) straight and bent in an arch shape.

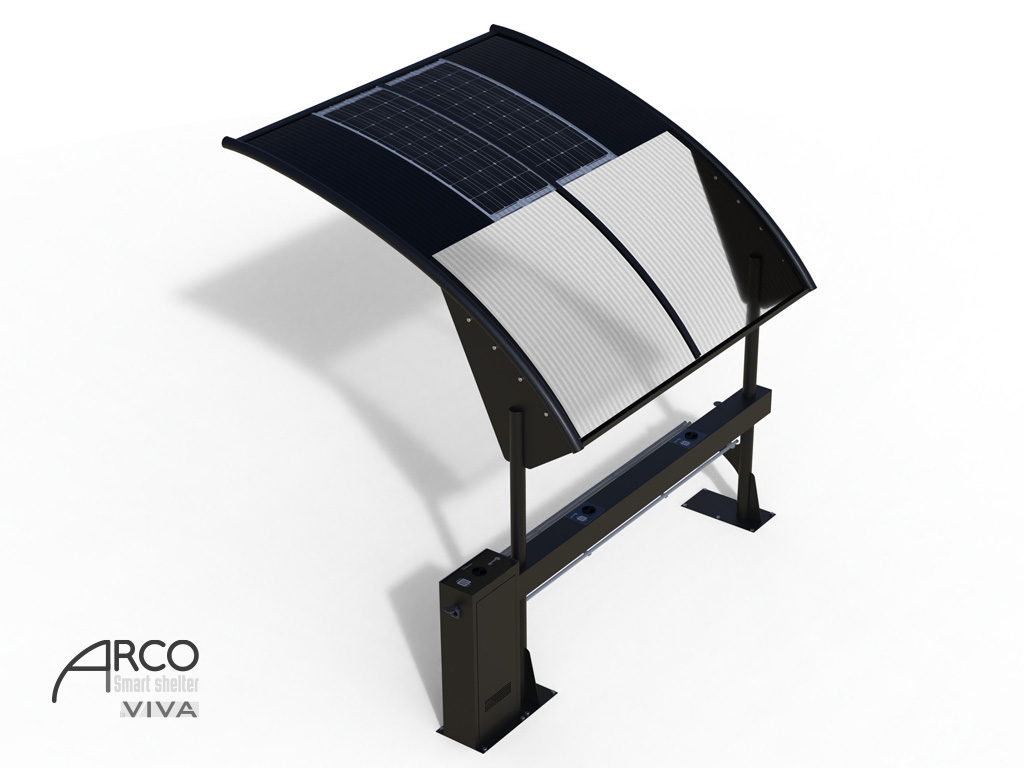

Roofing is made from double-protected, UV-resistant, striped polycarbonate panel reinforced by steel frame in the lower part,transpartent PMMA sheet in the upper part to embed and protect the solar panels, in the rear part of the roof there is gutter for water drainage.



The front part is prepared for insertion of electric bicycle or five-seater scooter carrier module made of steel;

In the center of the canopy PLUG Module consisting of tubular section 200 x 200 mm containing two 220V shuko-type protected sockets and three 42/48v locations for charging electric bikes and scooters

with various connectors.



Each PLUG Module provides two schuko sockets and three 42/48v charging modules for ebikes or scooters ,

Users can park their e-bikes or scooters conveniently while charging.

Technical features:

No. 2 Schuko sockets with IP67 protection

No. 3 multifunctional 42/48v charging stations with three types of connectors.

No. 5 bike or scooter holders.

Rated power: 500 W

Rated voltage: 230v

Rated frequency: 50Hz

Type of socket (category): recessed socket

Type of protection: IP67



SWITCH:

No. 1 Magnetothermic differential Id 0.003mA

Trip delay time: INSTANTANEOUS

Rated current: 25/22 A

Complies with standard: CEI EN 61008

Signal light: voltage presence



Version features:

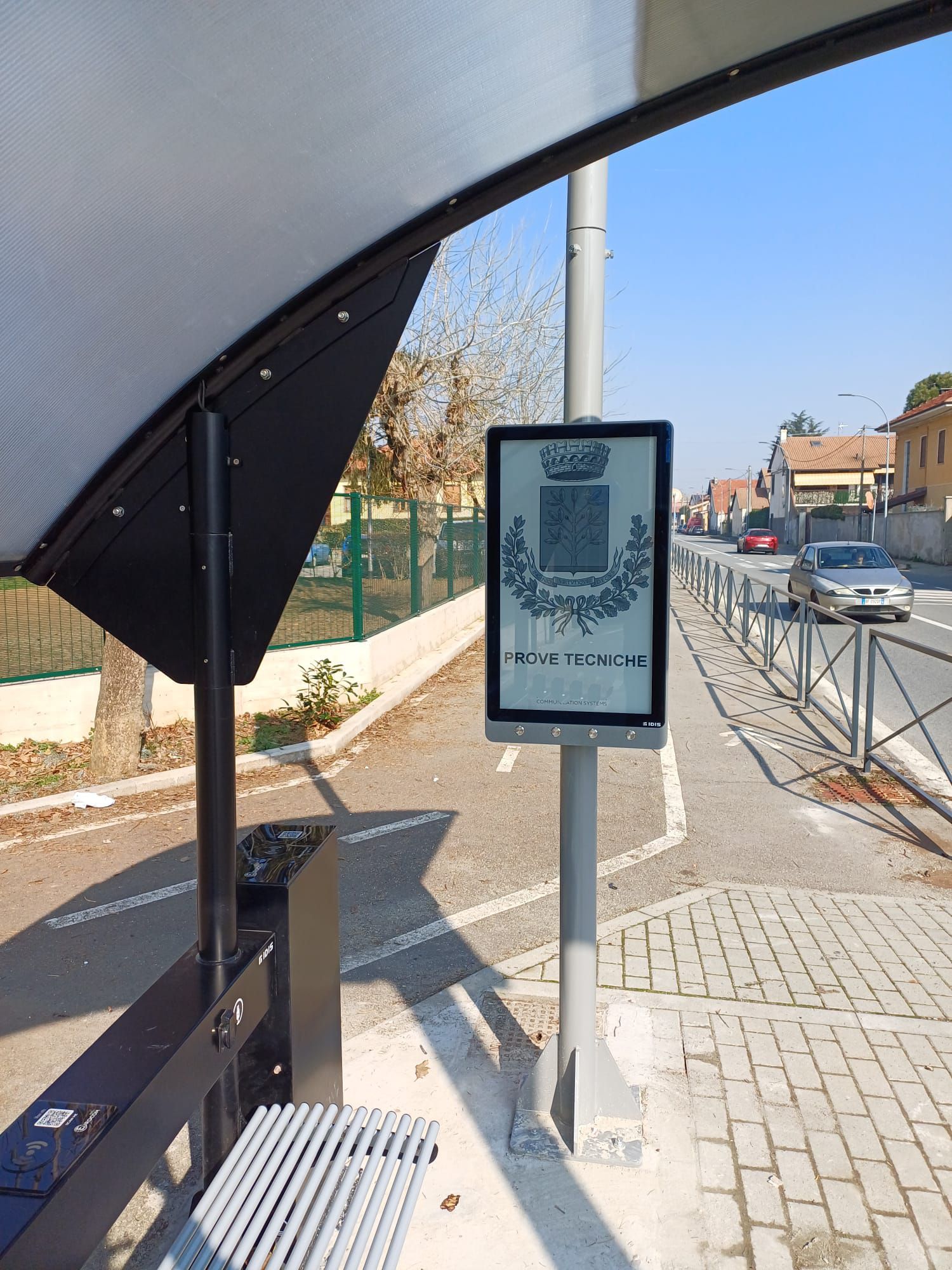

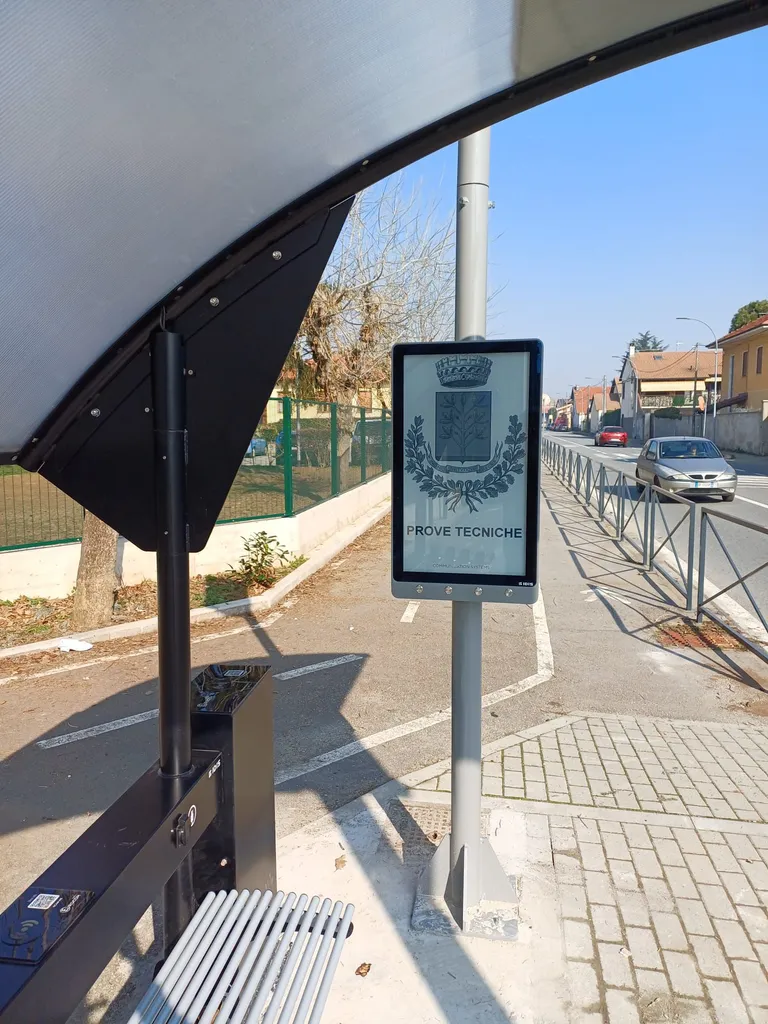

Equipped with No. 2 USB sockets mounted on the right side and wireless charger devices built into the structure 20W ;

LED backlighting system cold white color.

System degree of protection IP65.

Fixing and maintenance:

The feet are prepared for doweling, by M10 steel bolt.

The smart module is removable and can be sent for maintenance without the need to remove the whole structure.

Surfaces are duly protected by 5P cycle and powder coated See specifications on material protection.

Registered design, registered smart technology.

ZERO WIRE SYSTEM i.e., no need for any kind of wiring.

Just place it in a sunny place and the solar panel powered carport will provide all services.

The new ARCO carport was created to modernize today's cities with innovative technologies in the area of control and enjoyment of specific features aimed at meeting the modern needs of citizens.

The new city is delineated by innovation and targeted services, thanks to its countless technological functions it becomes a place not only for relaxation, but also for gathering where it is possible to conceive a new way of thinking about the city.
