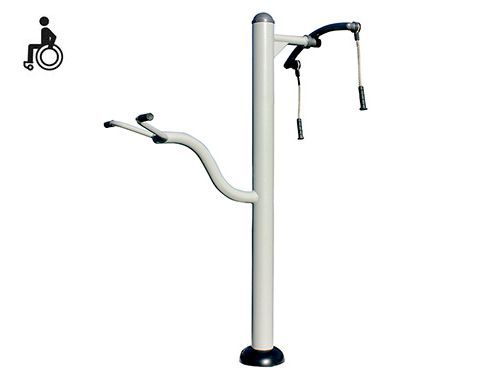

Certified EN 16630 Steel Fitness Equipment for Parks - Shoulder Stretching Type, Inclusive Design
Code DP677
Category: Eco-friendly playgrounds, Playgrounds for parks, Outdoor Fitness Equipment and Workout,
Quantity (pc) :
Description
Downloads
Certified EN 16630 Steel Fitness Equipment for Parks - Shoulder Stretching Type, Inclusive Design
Description Functions of the equipment:
Exercises the muscles of the upper limbs, back, and chest.
Improves muscle condition of the back and shoulders.
Complies with EN 16630 standard.
No trauma flooring required as per HIC EN 1176 standard.
Impact surface:
Usage age: Inclusive for heights over 1.4 m
Fall height: 0 m.
Equipment weight: 39.8 kg.
Dimensions: 1.3 x 0.86 x 2.18 m.
Minimum space: 4.36 x 3.86 m.
Impact surface: 14.89 m2.
Installation:
Equipment designed for masonry installation using anchor bolts.
Surface protection: See material protection specifications.
Designed for a wide age range.
Mechanics designed to optimize performance and reduce physical strain.
The equipment is built around a 140 mm diameter, 3 mm thick steel support column.
The rest of the materials used in the components are of similar quality in terms of resistance and thickness.
Powder coated in an automated painting process with two layers of cleaning, drying, powder application, and thermal hardening at 210 ° C to ensure corrosion resistance of over 240 hours in salt spray chamber tests.
This process uses a double layer of paint that includes an initial epoxy resin-rich zinc primer and an outer layer of high-quality polyester.
The result of the painting process is a uniform protective layer that is never less than an average between 100 and 130 microns.
Each piece of equipment includes an informational notice according to EN 16630 standard indicating correct use of the equipment.
