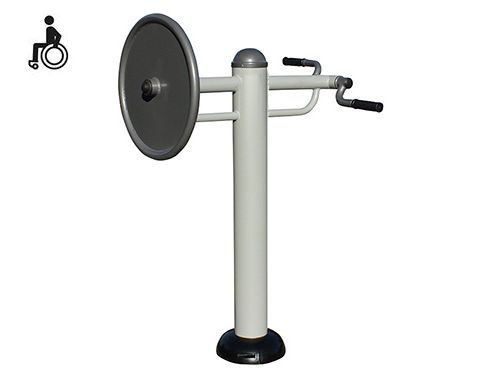

Certified EN 16630 Steel Fitness Equipment for Parks with Disc and Pedals, Inclusive Design
Code DP678
Category: Outdoor Fitness Equipment and Workout, Playgrounds for parks, Eco-friendly playgrounds,
Quantity (pc) :
Description
Downloads
Certified EN 16630 Steel Fitness Equipment for Parks with Disc and Pedals, Inclusive Design
Description and Functions:
Improves flexibility and mobility of upper joints.
Enhances and increases cardiopulmonary capacity.
Complies with EN 16630 standard.
No need for shock-absorbing flooring as per HIC guidelines of EN 1176 standard
Impact area:
Usage age: Inclusive for heights> 1.4 m
Fall height: 0 m.
Equipment weight: 33 kg.
Dimensions: 0.9 x 0.74 x 1.39 m.
Minimum space required: 3.9 x 3.74 m.
Impact surface: 12.65 m2.
Installation:
Equipment designed for installation in masonry using anchor bolts.
Surface protection: See specifications on material protection.
Designed for a wide age range.
Mechanics designed to optimize performance and reduce physical strain.
The equipment is built around a steel support column with a diameter of 140 mm and thickness of 3 mm.
The rest of the materials used in the components are of similar quality in terms of resistance and thickness.
Powder-coated with an automated painting process involving two layers of cleaning, drying, powder application, and thermal hardening at 210°C to ensure corrosion resistance of over 240 hours in salt spray chamber tests.
This process uses a double layer of paint that includes an initial primer of zinc-rich epoxy resin and an outer layer of high-quality polyester.
The result of the painting process is a uniform protective layer never less than an average of 100 to 130 microns.
Each piece of equipment includes an informative notice according to EN 16630 standard, indicating the correct use of the equipment.
