EN 16630 Certified Steel Fitness Equipment for Parks - Thigh Stretch Type
Code DP653
Category: Eco-friendly playgrounds, Playgrounds for parks, Outdoor Fitness Equipment and Workout,
Quantity (pc) :
Description
Specifications
Downloads

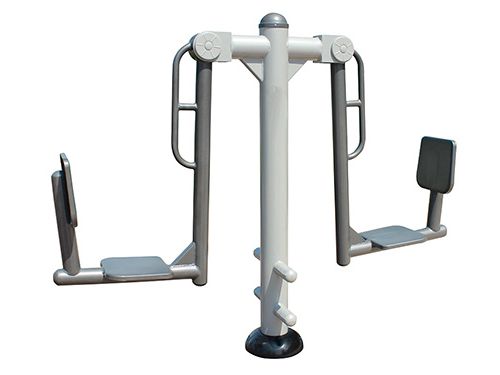

Certified steel fitness equipment for parks, EN 16630 thigh stretch type.
Description: Functions of the equipment:
Develops and strengthens the muscles of the legs and waist, particularly the quadriceps, calves, glutes, and abdominal muscles.
Compliant with EN 16630 standards.
No trauma flooring required according to HIC, EN 1176 standards
Impact area:
Usage age: h > 1.4 m, < 130 kg.
Fall height: 1.06 m.
Equipment weight: 84 kg.
Dimensions: 2.18 x 0.4 x 1.66 m.
Minimum space required: 5.18 x 3.4 m.
Impact surface: 15.68 m2.
Installation:
Equipment designed for masonry embedding using anchor bolts.
Surface protection: See material protection specifications.
Designed for a wide range of ages.
Mechanics designed to optimize performance and reduce physical strain.
The equipment is constructed around a support steel column with a diameter of 140 mm and a thickness of 3 mm.
The other material components boast similar quality in terms of resistance and thickness.
Powder coated with an automated painting process involving two layers of cleaning, drying, powder application, and thermal hardening at 210°C to ensure corrosion resistance for over 240 hours in salt spray chamber tests.
This process uses a double layer of paint that includes an initial primer of zinc-rich epoxy resin and an outer layer of high-quality polyester.
The result of the painting process is a uniform protective layer that is never less than an average between 100 and 130 microns.
Each piece of equipment includes an informational warning according to EN 16630 standards for proper use of the equipment.
