EN 16630 Certified Steel Fitness Equipment for Parks - Double Abdominal Type
Code DP665
Category: Eco friendly playgrounds, Playgrounds for parks, Outdoor Fitness Equipment and Workout,
Quantity (pc) :
Description
Specifications
Downloads

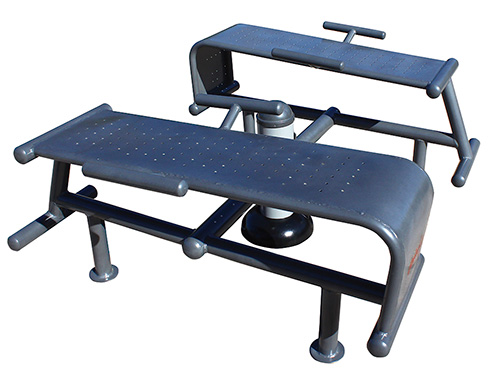

EN 16630 Certified Steel Fitness Equipment for Parks - Double Abdominal Type
Description Features of the equipment:
Develops strength and flexibility in lumbar and abdominal muscles.
Helps reduce fat around the waist and abdomen.
Complies with EN 16630 standard.
No shock-absorbing flooring needed as per HIC under EN 1176 standard
Impact area:
Usage age: h > 1.4 m, < 130 kg.
Fall height: 0.63 m.
Equipment weight: 63 kg.
Dimensions: 1.32 x 0.79 x 0.63 m.
Minimum space required: 4.66 x 4.29 m.
Impact surface: 18.60 m2.
Installation:
Equipment designed for embedding in masonry using anchor rods.
Designed for a wide age range.
Mechanics designed to optimize performance and reduce physical strain.
The equipment is built around a 140 mm diameter, 3 mm thick steel support column.
The rest of the materials used in the components are of similar quality in terms of resistance and thickness.
Powder-coated with an automated painting process involving two layers of cleaning, drying, powder application, and thermal hardening at 210 °C to ensure corrosion resistance of over 240 hours in salt spray chamber tests.
This process includes a double layer of paint consisting of an initial primer of zinc-rich epoxy resin and a high-quality polyester outer layer.
The result of the painting process is a uniform protective layer that is never less than an average of 100 to 130 microns.
Each piece of equipment comes with an informational notice according to EN 16630 standard indicating correct usage of the equipment.
