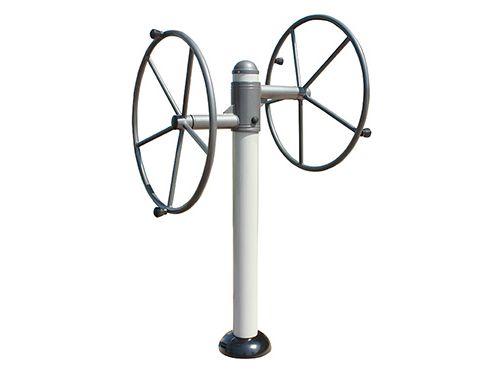

EN 16630 Certified Steel Fitness Equipment for Parks - Helm Type
Code DP652
Category: Eco-friendly playgrounds, Playgrounds for parks, Outdoor Fitness Equipment and Workout,
Quantity (pc) :
Description
Downloads
EN 16630 Certified Steel Fitness Equipment for Parks - Helm Type
Description and Functions:
Strengthens upper limb muscles, as well as shoulder joint flexibility and agility.
Compliant with EN 16630 standard.
No anti-trauma flooring required per HIC guidelines of EN 1176 standard
Impact area:
Usage age: h > 1.4 m, < 130 kg.
Fall height: 0 m.
Equipment weight: 56 kg.
Dimensions: 1.09 x 0.93 x 1.87 m.
Minimum space required: 4.09 x 3.92 m.
Impact surface: 14.10 m2.
Installation:
Equipment prepared for masonry installation using anchor bolts.
Surface protection: See material protection specifications.
Designed for a wide age range.
Mechanics designed to optimize performance and reduce physical strain.
The equipment features a steel support column with a diameter of 140 mm and thickness of 3 mm.
The rest of the materials used in the components boast similar quality in terms of resistance and thickness.
Powder coated with an automated painting process involving two layers of cleaning, drying, powder application, and thermal hardening at 210°C to ensure corrosion resistance of over 240 hours in salt spray chamber tests.
This process uses a double layer of paint including an initial primer of zinc-rich epoxy resin and an outer layer of high-quality polyester.
The result of the painting process is a uniform protective layer that is never less than an average between 100 and 130 microns.
Each piece of equipment includes an informative notice according to the EN 16630 standard indicating the correct use of the equipment.
