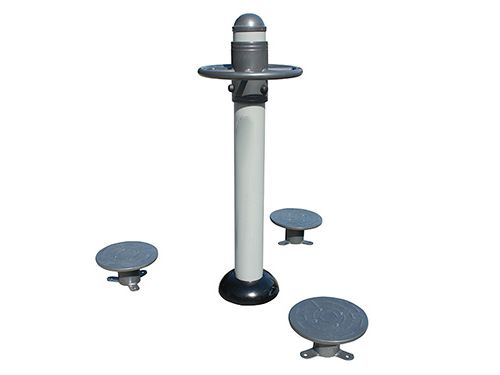

Certified Steel Fitness Equipment for Parks, EN 16630 Belt Type

Certified Steel Fitness Equipment for Parks, EN 16630 Belt Type

Description  Functions of the Equipment:

Strengthens the waist and helps relax the muscles of the waist and back.

Increases agility and flexibility of the lower back.

Complies with EN 16630 standard.

No need for anti-trauma flooring according to HIC standard EN 1176

Impact area:

Usage age: h > 1.4 m, < 130 kg.

Fall height: 0.13 m.

Equipment weight: 49 kg.

Dimensions: 0.43 x 0.43 x 1.26 m.

Minimum space: Ø 4.82 m.

Impact surface: 18.24 m2.



Installation:

Equipment designed for installation in masonry through deep anchoring.

Surface protection: See specifications on material protection.





Designed for a wide age range.

Mechanics designed to optimize performance and reduce physical strain.

The equipment features a steel support column with a diameter of 140 mm and a thickness of 3 mm.

The other materials used in components also boast similar qualities in terms of strength and thickness.

Powder coated with an automated painting process that includes two layers of cleaning, drying, powder application, and thermal hardening at 210 ° C to ensure corrosion resistance of over 240 hours in salt spray chamber tests.

This process uses a double layer of paint that includes an initial primer of zinc-rich epoxy resin and an outer layer of high-quality polyester.

The result of the painting process is a uniform protective layer that is never less than an average of 100 to 130 microns.

Each piece of equipment includes an informative notice according to EN 16630 standard, indicating the correct use of the equipment.
